3 5 7 Layers Corrugated Cardboard Production Line 150T Weight 220V 380V

Name: 3 5 7 Layers Corrugated Cardboard Production Line 150T Weight 220V 380V
Brand: Zhenxing Packaging
Price: 1 USD

Brand Name : Zhenxing Packaging

Certification : CE

Place of Origin : Hebei, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Supply Ability : 100 Sets Per Year

Name : 3,5,7layers Corrugated Cardboard Production line

Condition : New

Output paper : Corrugated Fluting Paper

Production : Fluting Paper Production Line

Voltage : 220V/380V

Dimension(L*W*H) : customized according to factory size

Color : Customized Color

Weight : 150T

Type : Papermaking Machines

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 12 Months

Port : XinGang TianJin

Packaging Details : 1.Outside package:Sandard export wooden cases 2.Inner package:Stretch film

Delivery Time : 80 days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

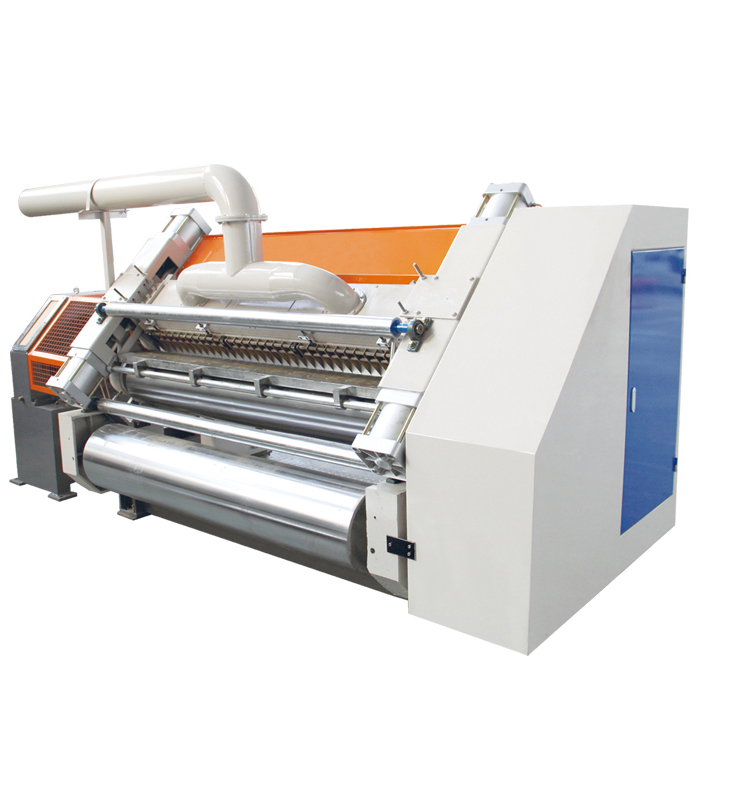

Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line mainly consist of the following equipment :Mill Roll Stand, surface paper(corepaper) pre-heater.Single facer, Conveying Span Bridge.Glue Application Machine, Double Facer,Slitter Scorer,Cut-off,Conveyer and Stacker,Steam heating System, Air compression system and Glue Making System, etc.Different models and quantities equipments can compose different models and grades 3ply,5ply,7ply corrugated paperboard production line. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 150-300m/min;the paper width 1400-2500mm and A/C/B/E/F five flutes for customer to choose from,the flute shape is UV shape and more like V shape.

Pecifications	Max machine speed	Maximum width of paper
SC150-1400-1,2,3	150m/min	1400
SC150-1600-1,2,3	150m/min	1600
SC150-1800-1,2,3	150m/min	1800
SC150-2000-1,2,3	150m/min	2000
SC180-1400-1,2,3	180m/min	1400
SC180-1600-1,2,3	180m/min	1600
SC180-1800-1,2,3	180m/min	1800
SC180-2000-1,2,3	180m/min	2000
SC200-1400-1,2,3	200m/min	1400
SC200-1600-1,2,3	200m/min	1600
SC200-1800-1,2,3	200m/min	1800
SC200-2000-1,2,3	200m/min	2000
SC150-2200-1,2,3	150m/min	2200
SC200-2200-1,2,3	200m/min	2200
SC250-2200-1,2,3	250m/min	2200
SC300-2200-1,2,3	300m/min	2200
SC200-2500-1,2,3	200m/min	2500
SC250-2500-1,2,3	250m/min	2500
SC300-2500-1,2,3	300m/min	2500
